Lead Screen

Lead screens revolutionize dynamic radiation protection through lightweight, modular designs, offering agile solutions for healthcare, industry, and emergency response. As a trusted exporter, we ensure every screen meets rigorous safety standards and global compliance, empowering clients to adapt shielding precisely where and when it’s needed.

Whatsapp:

+8613348108252

E-mail:

sales02@wuxisteel.cn

Category： Lead Screen

Inquire Now

Lead Screen

Lead Screen: Modular & Mobile Solutions for Adaptive Radiation Shielding

Structure & Material Design

1. Core Construction

Shielding Layer: High-purity lead-polyethylene composite (5-20mm thickness, 0.5-2mm Pb equivalent);
Frame: Aerospace-grade aluminum alloy, 40% lighter than steel with 200kg load capacity;
Mobility: 360° silent casters (with brakes) + telescopic handle.

2. Modular Technology

Interlocking Design: Hook-and-loop/click-lock connections, single panel 900×1800mm for wall assembly;
Customizable Openings: Pre-cut lead glass windows (>80% transmittance) or access ports.

Technical Specifications

Parameter	Specifications	Test Standard
Shielding Grade	>99% attenuation for 150kV X-ray (2mm Pb eq.)	IEC 61331-1
Weight	25-50kg/m² (1/3 weight of solid lead)	ISO 80000-1 weight test
Impact Resistance	IK08 (EN 62262)	Pendulum impact test
Environmental Range	-30°C to +60°C, 10%-95% RH	IEC 60068 environmental test

Applications

1. Medical Protection

Mobile X-ray operator shields, temporary dental CT barriers;
Bedside radiation screens in ERs, flexible DR room partitions for veterinary clinics.

2. Industry & Nuclear

Temporary containment during nuclear plant maintenance;
Mobile γ-ray shielding walls for industrial radiography.

3. Research & Emergency

Emergency isolation for lab radioactive leaks;
Rapid-deploy CBRN barriers for military drills.

Services & Certifications

Customization: Size up to 2000×3000mm, surface films (antibacterial/anti-static), logo printing;
Certifications: CE, ISO 14117 (medical compatibility), IAEA compliance;
Global Logistics: Foldable packaging (70% volume reduction), TT/LC delivery.

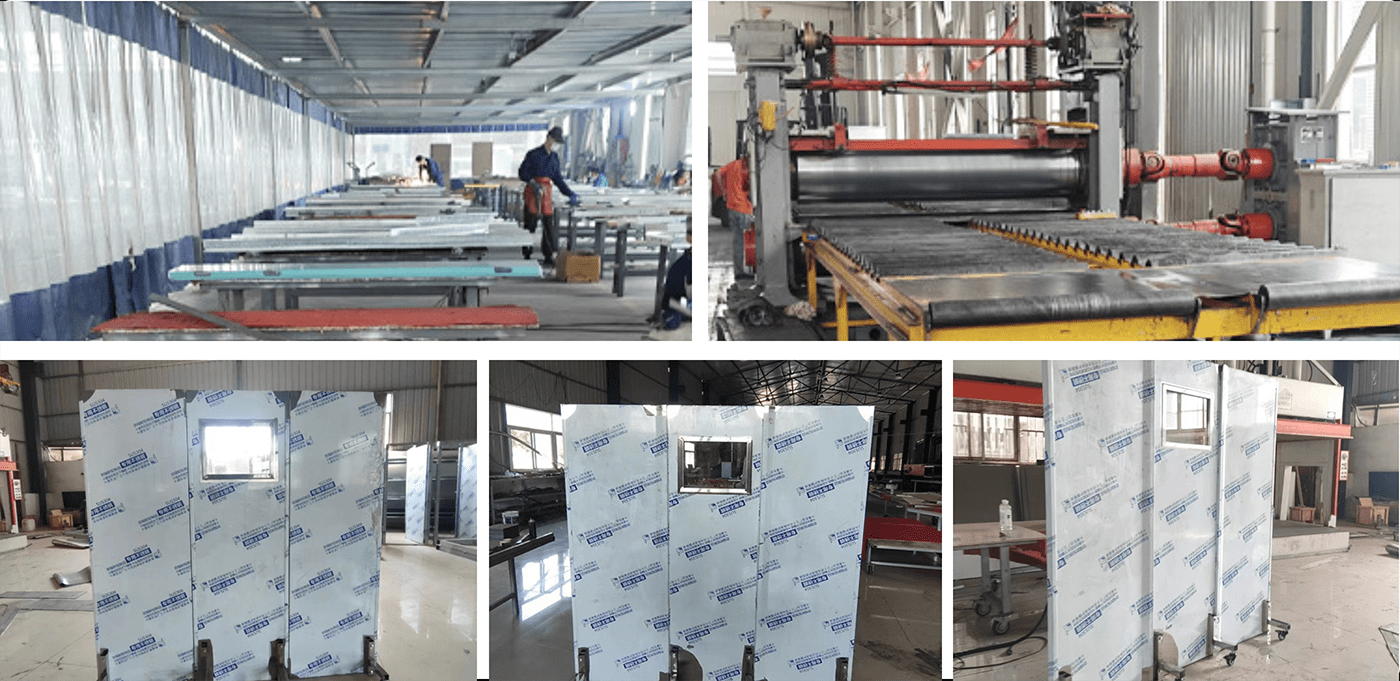

Packing and delivery

Keywords： Lead Screen

Previous page： None

Next page： ISO-Certified Lead Screen Supplier - Direct Supply for Global Medical Projects

Client Feedback

Quality Service And Excellent Team

FAQ

Can you customize special specifications of lead rods?

Requirements such as diameter, length, purity, surface treatment, etc. need to be provided, and some need to pay for molds or meet the minimum order quantity.

Can the dimensions of the lead plate be customized?

Sure, the size specifications of lead plates can usually be customized according to the specific needs of customers. Both length, width, and thickness can be produced according to requirements to meet the installation and usage requirements of different projects.

What are the common thicknesses of lead plates?

Common lead plate thicknesses include 0.5mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, etc. Of course, lead plates of other special thicknesses can also be customized according to different application needs.

What is the density of lead sheet?

The density of lead is about 11.34 g/cm3, and the density of the lead plate is roughly in this range, which makes the lead plate have a good ability to shield rays.

What are the main components of lead sheet?

The main component of lead sheet is metal lead, which usually contains a small amount of other elements, such as antimony, tin, etc., to improve the performance of lead sheet.
