Lead Wire

Lead Wire: Precision Wire Solutions with High-Density Performance

Material Properties

1. Chemical Composition

Purity: ≥99.97% electrolytic lead (ASTM B749), optional lead-antimony alloy (1%-3% Sb);
Compliance: RoHS/REACH compliant, MSDS certification available.

2. Physical Properties

Density: 11.34 g/cm³, ideal for radiation shielding and weighting;
Ductility: Cold-drawn to 0.5mm diameter without fracture, surface roughness Ra≤0.8μm;
Corrosion Resistance: Resists seawater and mild chemicals, lifespan >10 years.

Technical Specifications

Parameter	Specifications	Test Standard
Diameter Range	0.5mm-20mm (±0.02mm tolerance)	ISO 286-1 dimensional test
Tensile Strength	8-12 MPa (pure lead) / 15-25 MPa (Pb-Sb alloy)	ASTM E8 tensile test
Lead Equivalent	0.1-2mm Pb (calculated by diameter & braiding density)	IEC 61331-1
Surface Finish	Bright annealed/epoxy-coated/tinned (optional)	ISO 8501-1 surface grade

Applications

1. Radiation Shielding

Medical: X-ray curtain braiding, radiotherapy counterweight chains;
Nuclear: Reactor control cable shielding, radiation monitor calibration wires.

2. Industry & Manufacturing

Soldering: Lead-tin alloy wires (low-temperature electronics soldering);
Marine: Submersible ballast nets, subsea pipeline anchoring chains.

3. Specialized Uses

Fishery: Eco-friendly deep-sea fishing sinkers (replacing iron);
Research: Shielding braids for high-energy physics experiments.

Services & Certifications

Customization: Spool winding (100m-5000m/roll), braided cables (multi-strand);
Certifications: ISO 9001, CE, DNV-GL (marine grade), UL (solder wire);
Global Logistics: Anti-oxidation vacuum packaging, UN 3077 compliant.

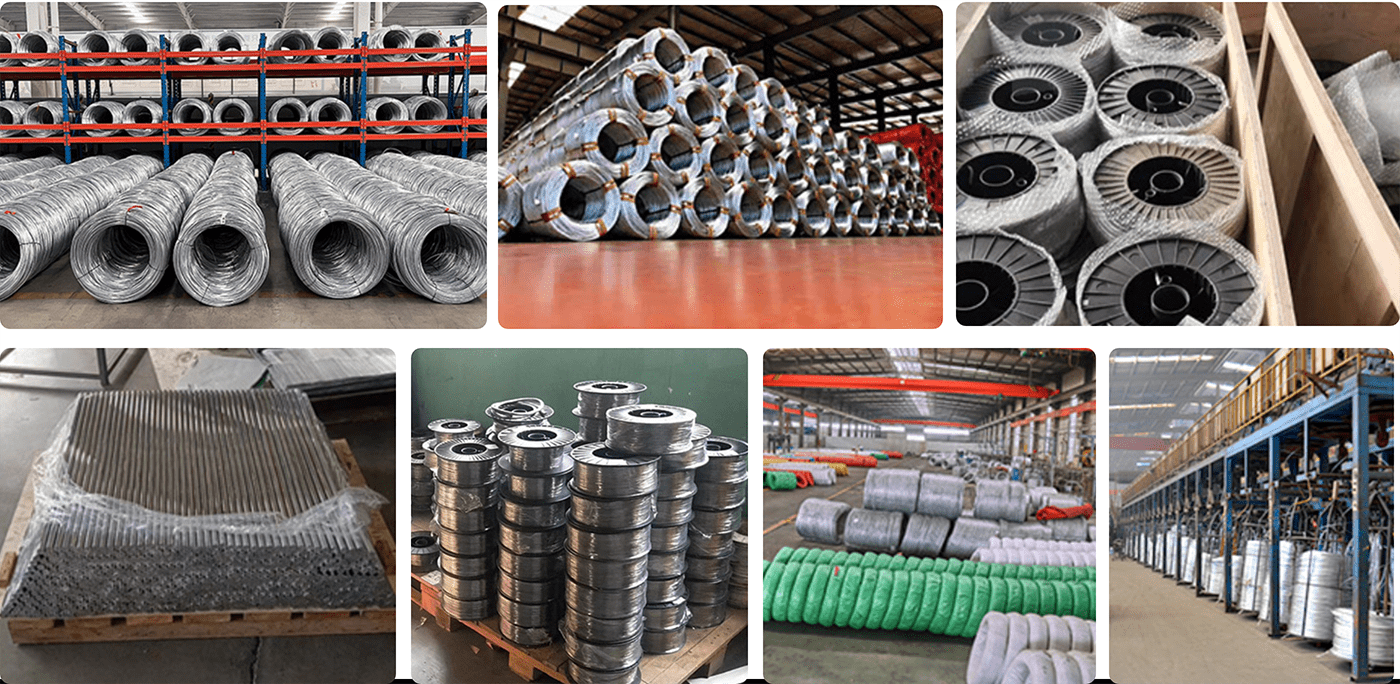

Packing and delivery

Keywords： Lead Wire

Previous page： None

Next page： Custom-Diameter Lead Wire - Tailored Solutions for Battery Electrodes

Client Feedback

Quality Service And Excellent Team

FAQ

Can you customize special specifications of lead rods?

Requirements such as diameter, length, purity, surface treatment, etc. need to be provided, and some need to pay for molds or meet the minimum order quantity.

Can the dimensions of the lead plate be customized?

Sure, the size specifications of lead plates can usually be customized according to the specific needs of customers. Both length, width, and thickness can be produced according to requirements to meet the installation and usage requirements of different projects.

What are the common thicknesses of lead plates?

Common lead plate thicknesses include 0.5mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, etc. Of course, lead plates of other special thicknesses can also be customized according to different application needs.

What is the density of lead sheet?

The density of lead is about 11.34 g/cm3, and the density of the lead plate is roughly in this range, which makes the lead plate have a good ability to shield rays.

What are the main components of lead sheet?

The main component of lead sheet is metal lead, which usually contains a small amount of other elements, such as antimony, tin, etc., to improve the performance of lead sheet.
