High-Density Radiation Shielding Lead Doors - Guardian for Hospital CT Rooms
Lead Doors: Engineered Solutions for Professional Radiation Shielding
Material & Structural Design
1. Core Materials
- Lead Layer: Electrolytic lead plates (purity ≥99.97%), thickness 10-50mm (lead equivalent 1-5mm Pb), density 11.34 g/cm³;
- Reinforcement: Cold-rolled steel (1.5-3mm) or aluminum alloy frame for impact resistance;
- Sealing: Lead-rubber gaskets at edges to eliminate radiation leakage.
2. Door Types
- Swing Doors: For medical X-ray rooms and labs, opening angle 90°-180°;
- Sliding Doors: Space-saving design for nuclear facilities and industrial sites;
- Blast-Proof Doors: Lead-armored steel composite structure for high-risk environments.
Technical Specifications
| Parameter | Standard Range | Test Method |
|---|---|---|
| Shielding Grade | 1-5mm Pb equivalent (customizable up to 10mm Pb) | ISO 4037 narrow-beam X/γ test |
| Shielding Efficiency | >99.9% (against 150kV X-ray) | IEC 61331-1 |
| Lifespan | ≥20 years (normal conditions) | Aging/fatigue cycle tests |
| Fire Rating | Class A (GB 12955) | High-temperature resistance test |
Applications
1. Healthcare
- CT/DR rooms, radiotherapy suite doors;
- PET-CT isotope injection zone shielding doors.
2. Nuclear & Industry
- Reactor control room doors, radioactive waste storage access;
- Industrial radiography doors (γ-ray/neutron sources).
3. Research & Security
- High-energy particle accelerator shielding doors;
- Government/military radiation emergency passage doors.
Services & Certifications
Customization: Non-standard sizes (max. 3000×4000mm per door), powder-coated finishes;
Certifications: ISO 9001, CE, NRC-compliant designs;
Global Support: Installation guidance & lifetime maintenance in 100+ countries.

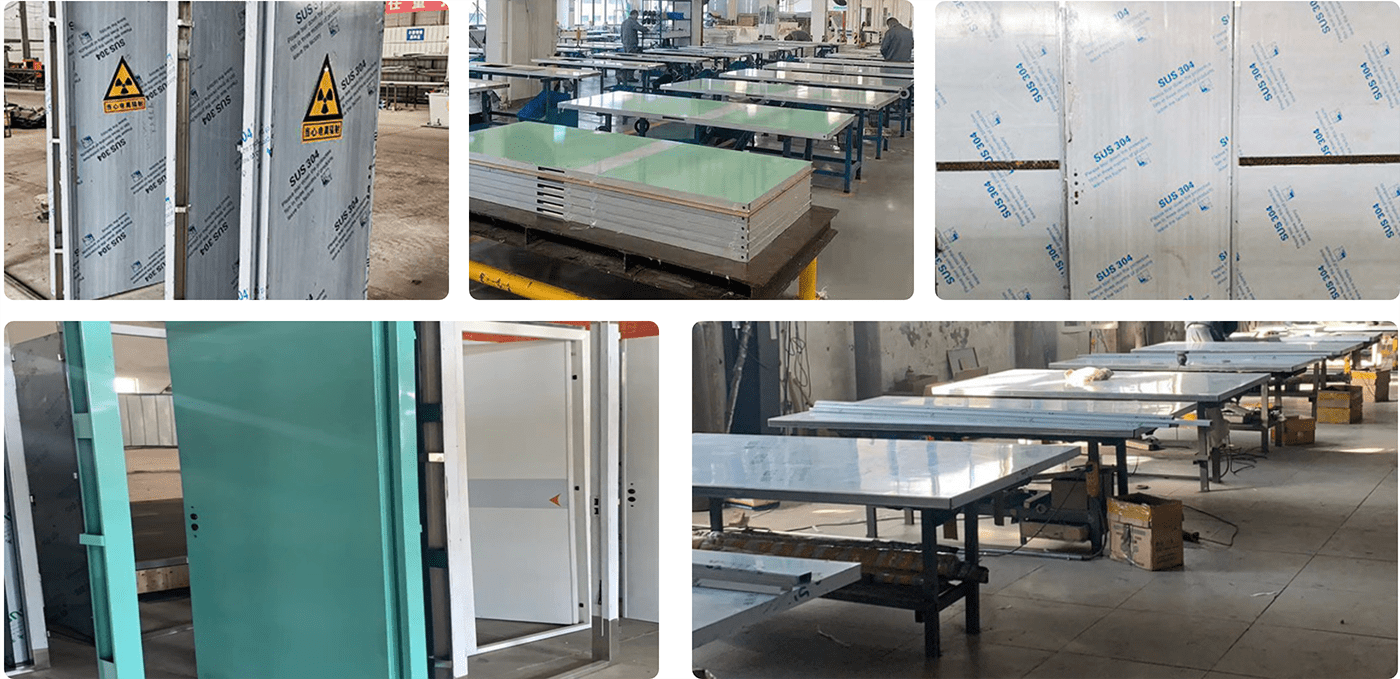

Packing and delivery
Keywords： High-Density Radiation Shielding Lead Doors - Guardian for Hospital CT Rooms
Next page： None
Client Feedback
Quality Service And Excellent Team
FAQ
Can you customize special specifications of lead rods?
Requirements such as diameter, length, purity, surface treatment, etc. need to be provided, and some need to pay for molds or meet the minimum order quantity.
Can the dimensions of the lead plate be customized?
Sure, the size specifications of lead plates can usually be customized according to the specific needs of customers. Both length, width, and thickness can be produced according to requirements to meet the installation and usage requirements of different projects.
What are the common thicknesses of lead plates?
Common lead plate thicknesses include 0.5mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, etc. Of course, lead plates of other special thicknesses can also be customized according to different application needs.
What is the density of lead sheet?
The density of lead is about 11.34 g/cm3, and the density of the lead plate is roughly in this range, which makes the lead plate have a good ability to shield rays.
What are the main components of lead sheet?
The main component of lead sheet is metal lead, which usually contains a small amount of other elements, such as antimony, tin, etc., to improve the performance of lead sheet.
